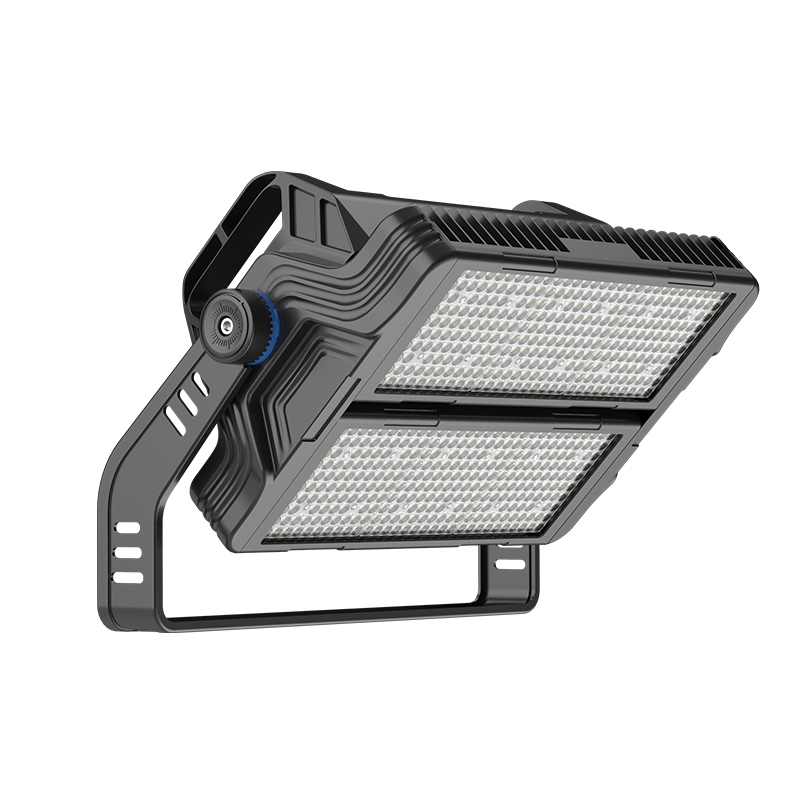

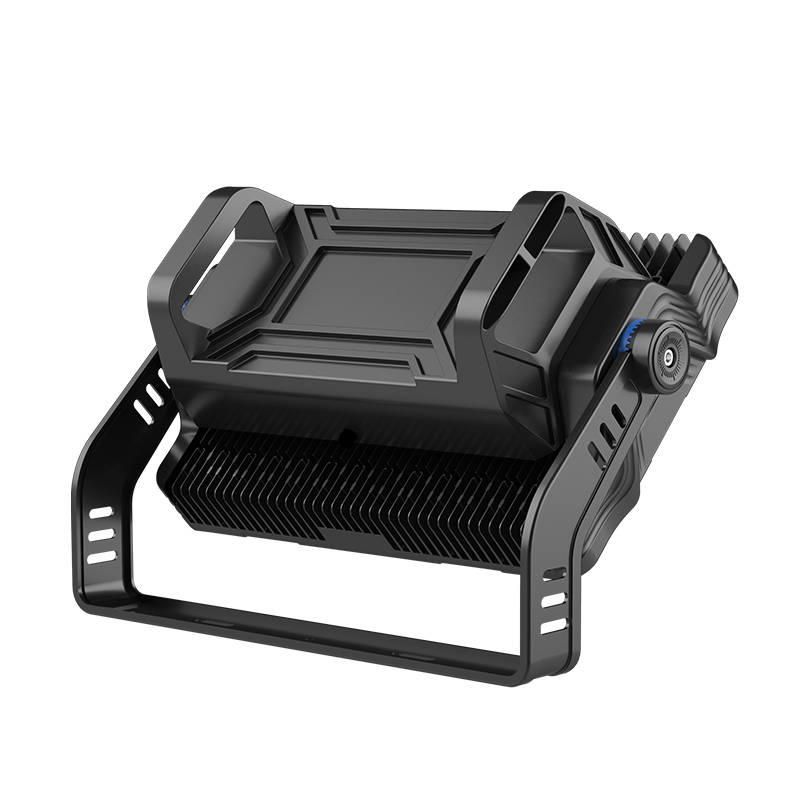

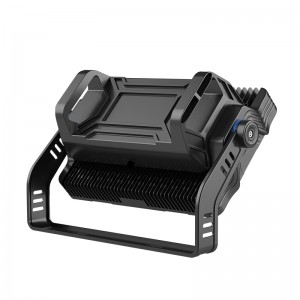

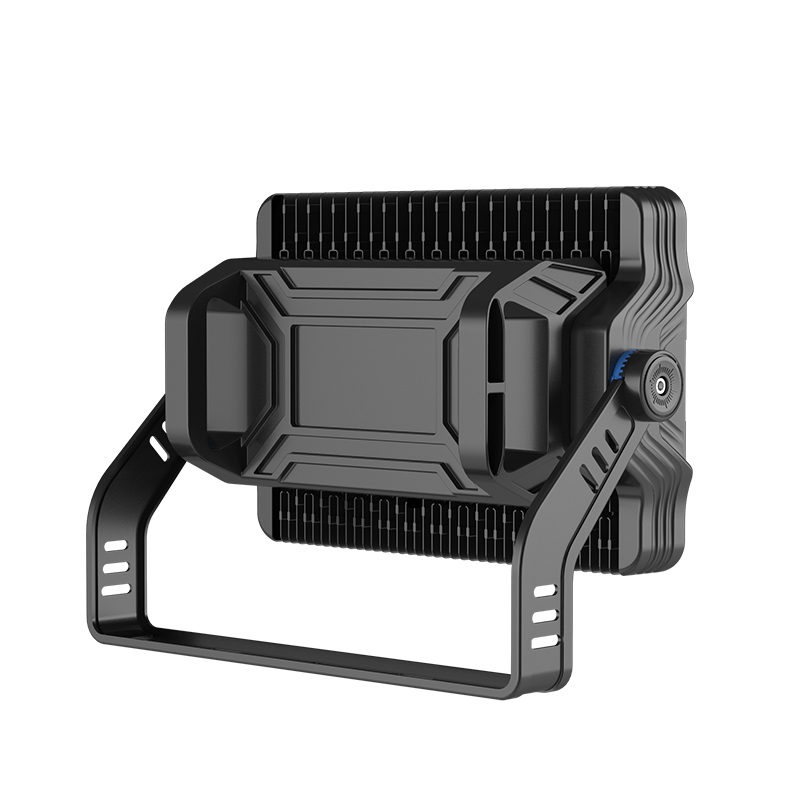

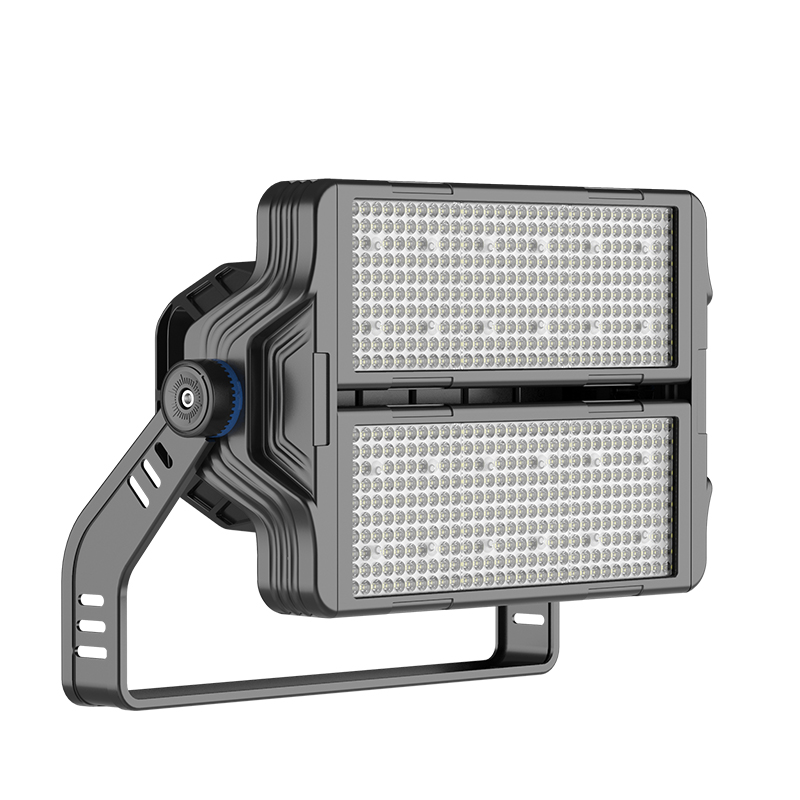

Master Series Stadium Lights

Short Description:

Operation Instruction for LED high mast light
Thank you for your purchase! Before install the product, please read th instruction carefully, and keep it for further reference.

Product Detail

Product Tags


1. Die Casted Housing , Thermal Conductivity 96W/(m*k)@25℃
2. Copper Breather Valve , Balance Internal and External Humidity and Pressure
3. Double SPD , Integrated 4-10KV Surge Protection and External 10KV Lighting Protector
4. Die Casted U Bracket , Highest Corrosion Resistance with Anti-Wind Level 17
5. Anti-UV Lens, 94% Transmittance with Customized Logo

Environment Requirement

Working Temperature:-35~+50℃
Storage Temperature:-35~+50℃
Working Humidity:0%~85%
Storage Humidity:0%~90%

Product Information

Category LED High Mast Light
Wattage 400w 500w 600w 800w 1000w 1200w  1500w 1800w
LightEfficacy Up to 150lm/W
Beam Angle 10°125145°160°/90°
Input Voltage AC100-277V
CCT 2700-6500K
CRI 70/ 80
Working Temperature -35~+50℃
Lifespan 60000H
IP Grade lP 66

Installation instruction

LED High Mast Light

Safety Instructions

▷ Becareful
1.Please use the product in accordance to this instruction.
2.Please do not replace components or modify lamps withoutauthorization.

▷ Attention
1.For your safety,please cut off the supply before install theproduct.
2.For the well function, please choose the voltage within therange specified on the product.
3.To avoid damage to the eyes, do not stare at a LED Lightsource long time.
4.Please follow the correct installation steps to install thisproduct, for your safety, please cut off the electricity beforeinstallation.
