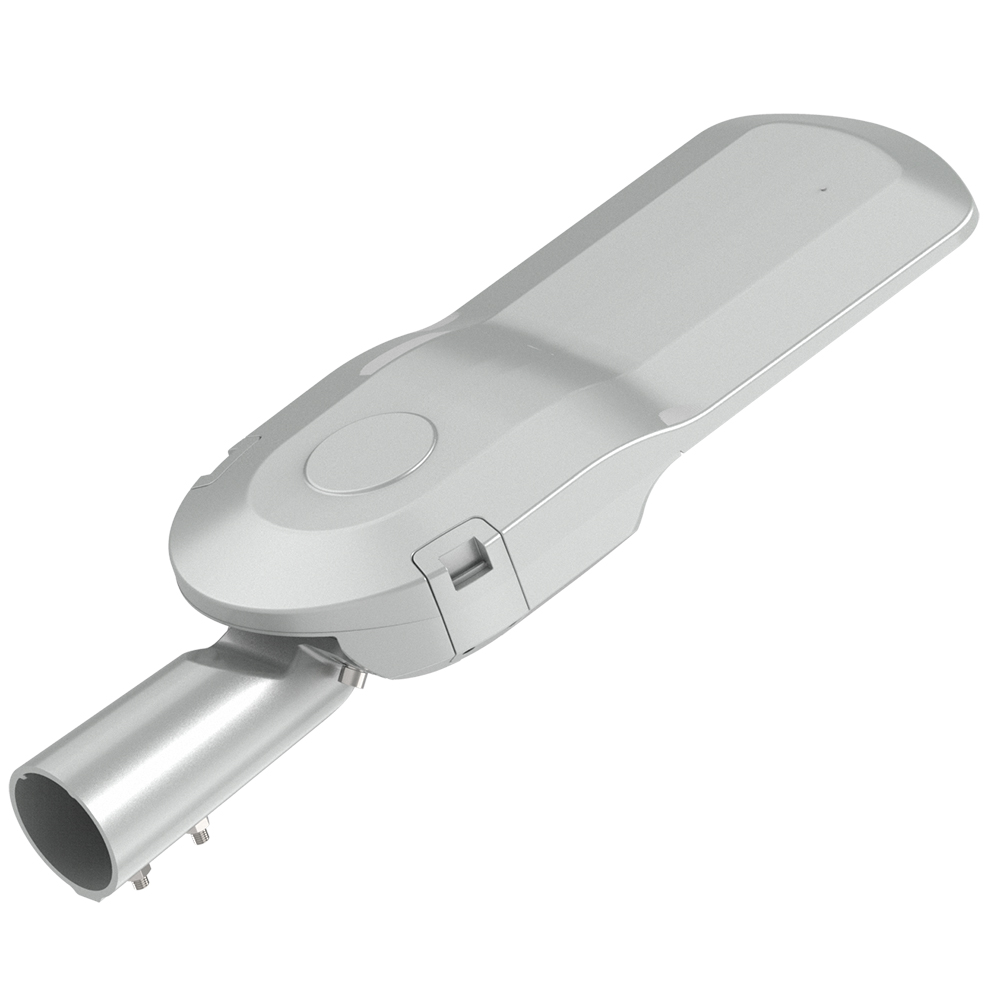

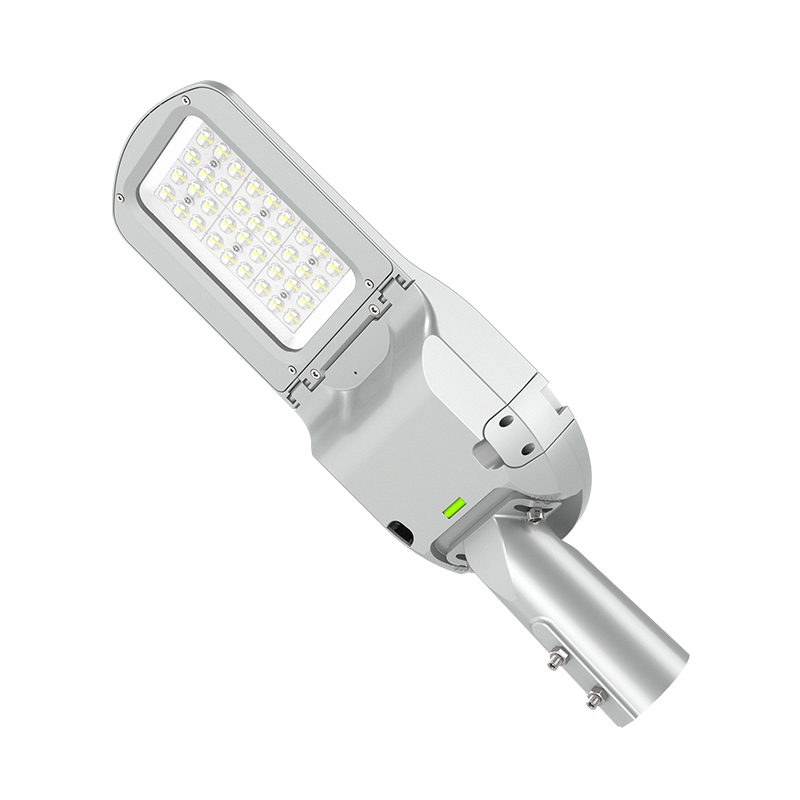

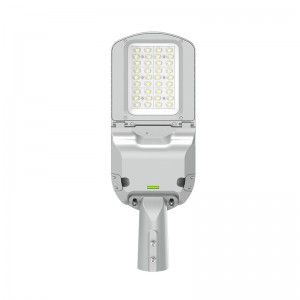

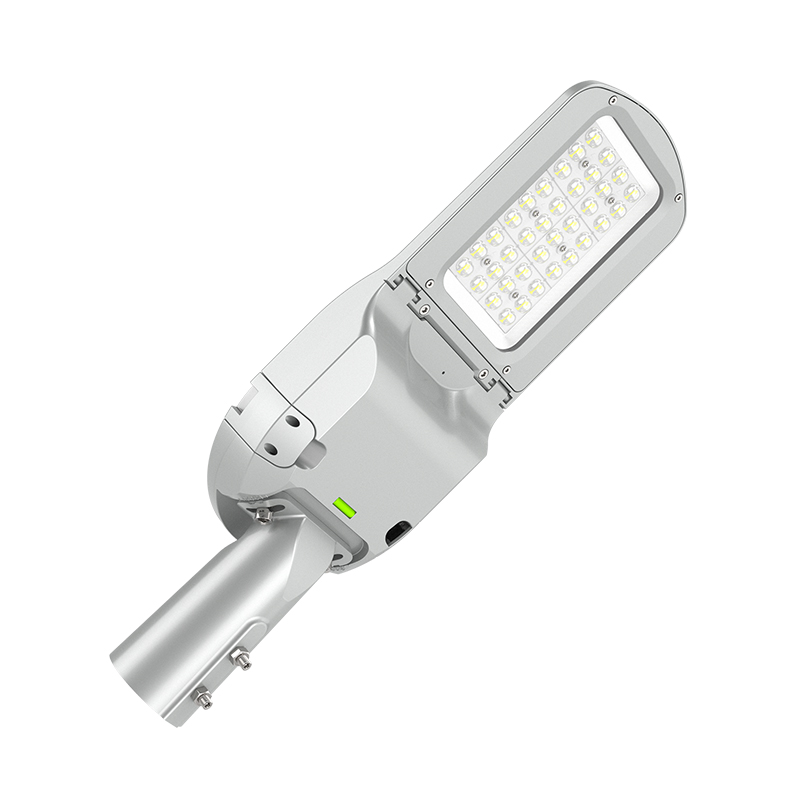

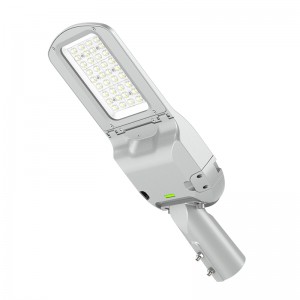

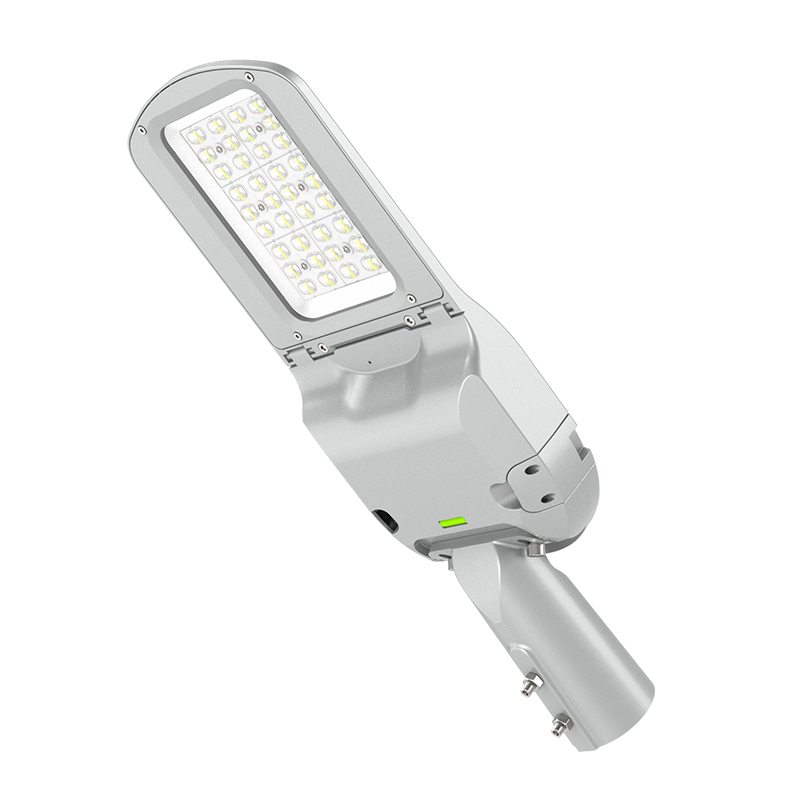

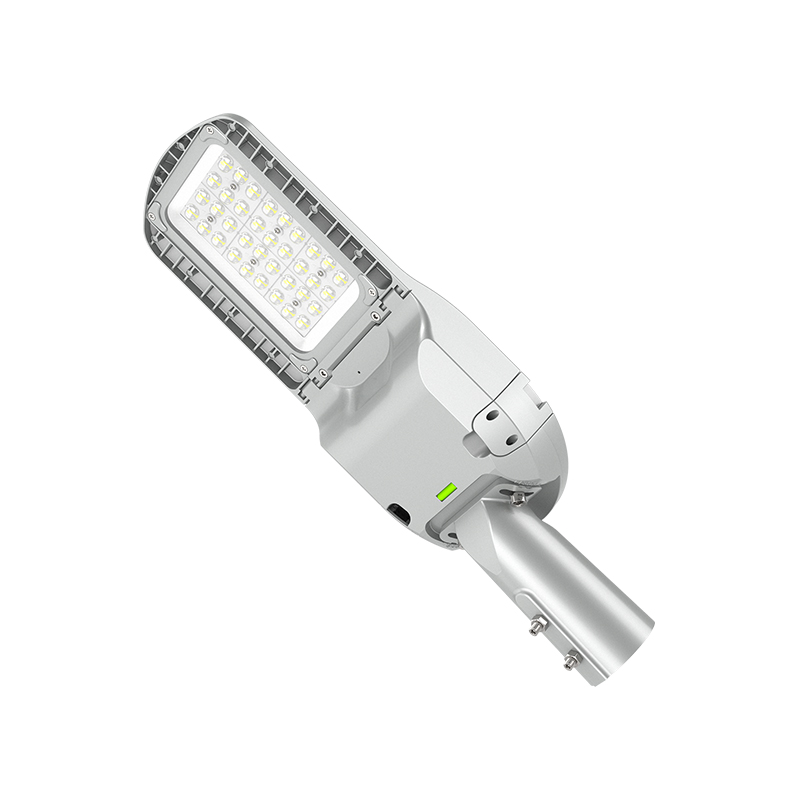

Artisan Series Street Light

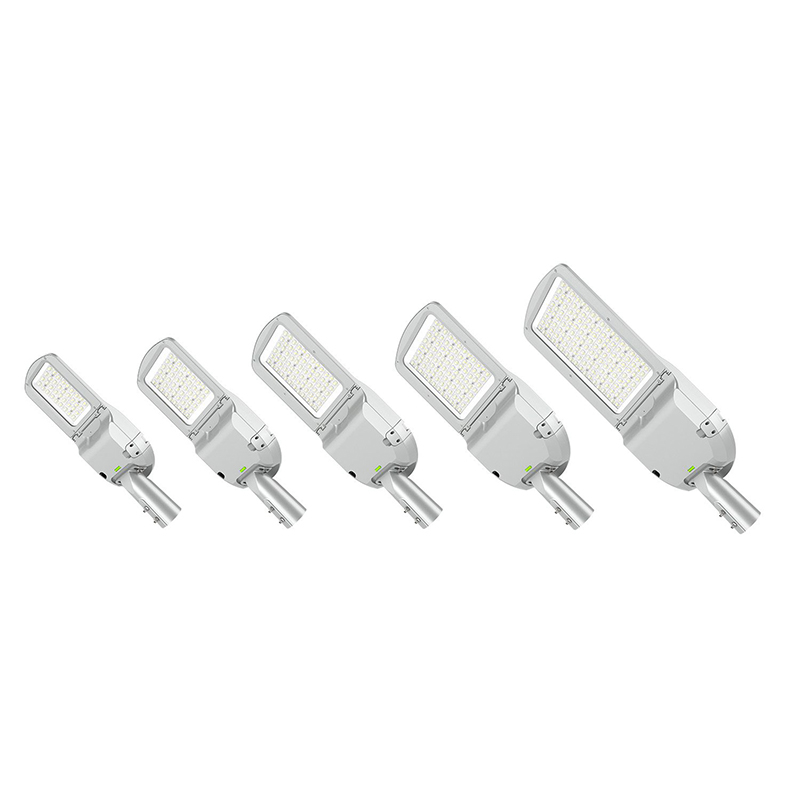

1. Artisan street light, from 20W to 300W, designing ve structures.

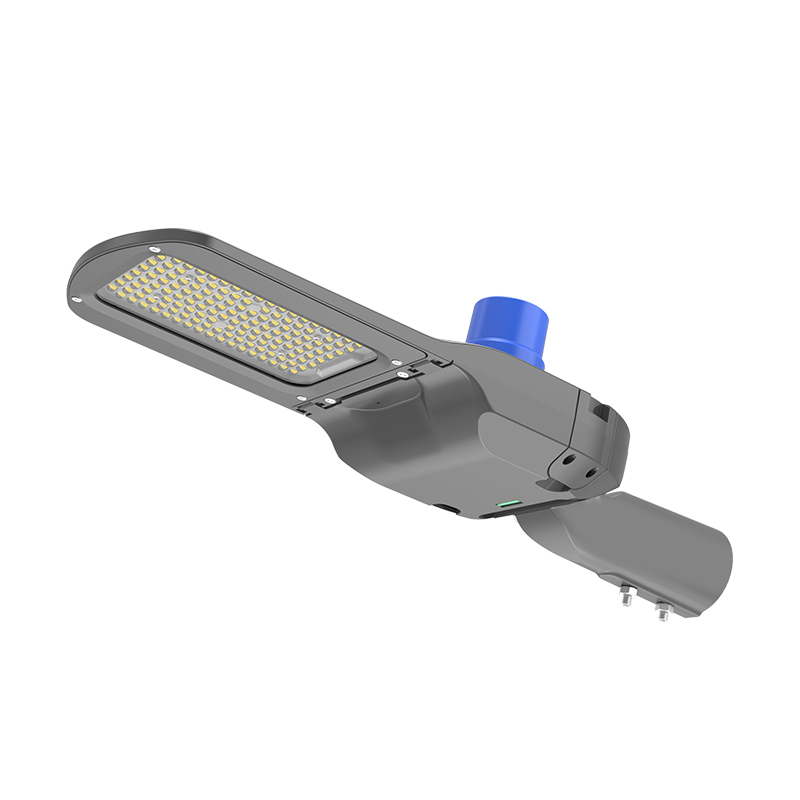

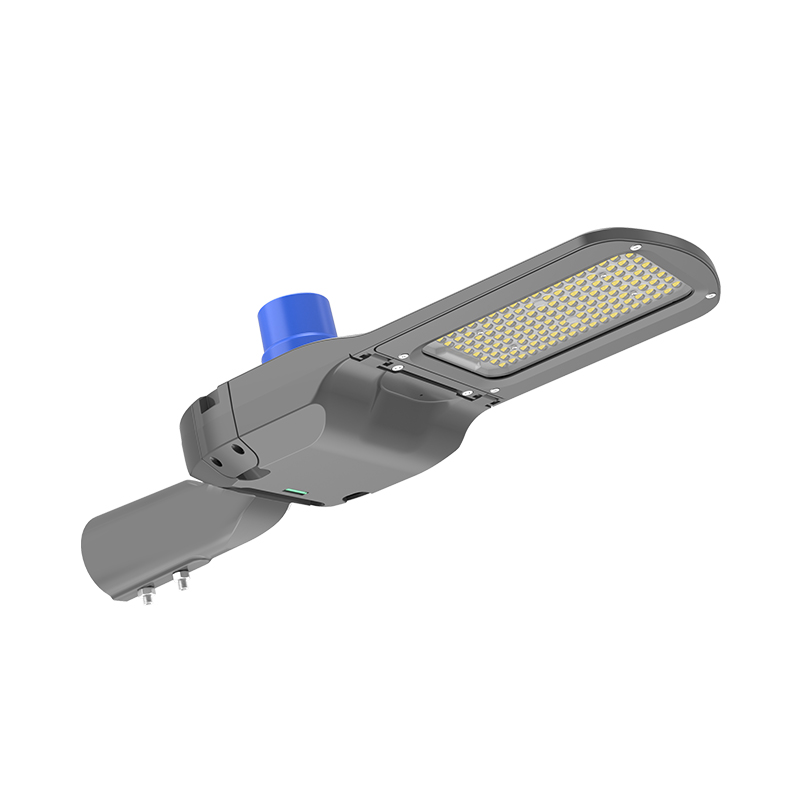

2. Optional light control 3/5/7 PIN NEMA receptacle and the infrared sensor.
3. SKD solution,Lenses, Glass, Upper Cover, Electrical parts etc, quickly assembly.
4. Standard adjustable spigot 60mm for the whole LINOS Series.
5. Tool-less access to the driver room by opening the upper cover.
6. 50*50mm Lenses, optional light source of 2835/3030/5050 etc, max. 180lm/W.
7 6 in 1 or 8 in 1 lenses, with different light distribution type2/3/4/5.
8. Independent electrical compartment and light source unit, lower temperature and longer lifetime.
9. The light back is smooth designed, with self-cleaning function.
10. The spigot is adjustable ±15° and 2.5° per step.
11. Standard version with gradienter for installation.
12. The driver room well fit with both Class I and Class II LED driver.
13. Optional the single light controller, Zhaga standard LED module and power disconnection switch.
![LED 7G Street Light (11)](https://www.diluxled.com/uploads/LED-7G-Street-Light-11.png)

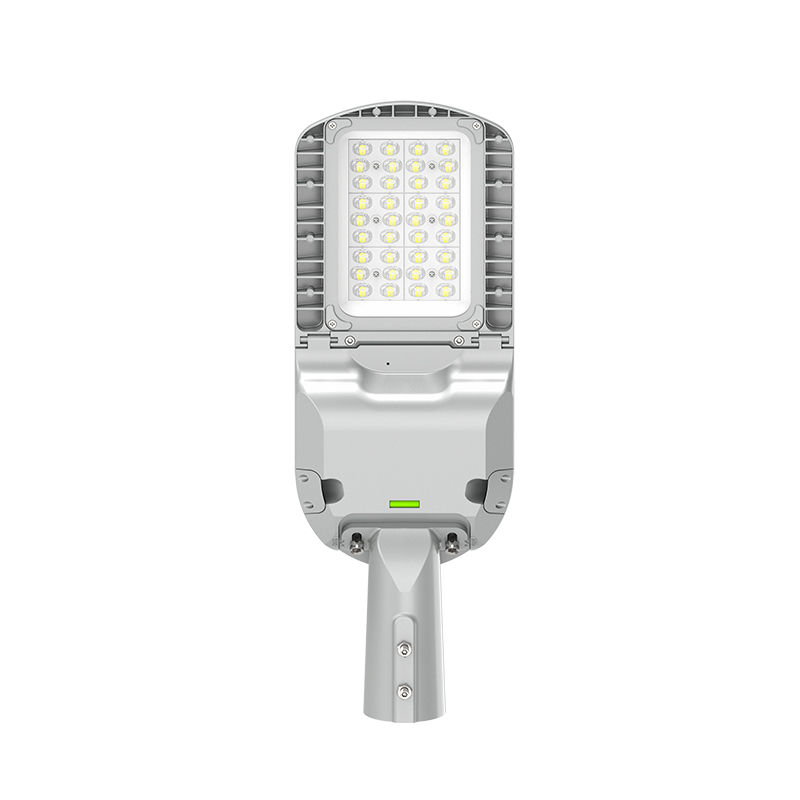

![LED 7G Street Light (6)](https://www.diluxled.com/uploads/LED-7G-Street-Light-6.png)
![LED 7G Street Light (12)](https://www.diluxled.com/uploads/LED-7G-Street-Light-12.png)
● Main road
● High way
● Flyover
● City street
● Overpass
● Sidewalk
● Square
● School
● Residential district
● Industrial area
● Park
![LED 7G Street Light (7)](https://www.diluxled.com/uploads/LED-7G-Street-Light-7.png)
![LED 7G Street Light (10)](https://www.diluxled.com/uploads/LED-7G-Street-Light-10.png)
![LED 7G Street Light (13)](https://www.diluxled.com/uploads/LED-7G-Street-Light-13.png)
![LED 7G Street Light (9)](https://www.diluxled.com/uploads/LED-7G-Street-Light-9.png)
![Artisan Technical Specification1](https://www.diluxled.com/uploads/Artisan-Technical-Specification1.png)
![Artisan Technical Specification2](https://www.diluxled.com/uploads/Artisan-Technical-Specification2.png)
![Artisan Technical Specification3](https://www.diluxled.com/uploads/Artisan-Technical-Specification3.png)
![Artisan Technical Specification4](https://www.diluxled.com/uploads/Artisan-Technical-Specification4.png)
T2M Unit light distribution curve
![LED 7G Street Light (5)](https://www.diluxled.com/uploads/LED-7G-Street-Light-5.png)
T3M Unit light distribution curve

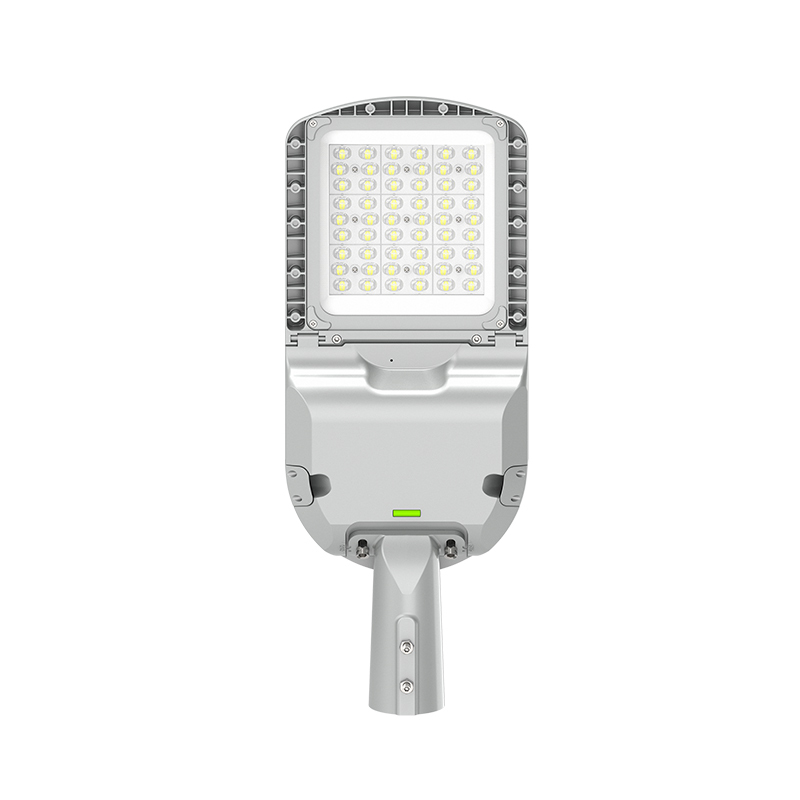

![LED 7G Street Light (8)](https://www.diluxled.com/uploads/LED-7G-Street-Light-8.png)
T4M Unit light distribution curve
![LED 7G Street Light (15)](https://www.diluxled.com/uploads/LED-7G-Street-Light-15.png)
![LED 7G Street Light (18)](https://www.diluxled.com/uploads/LED-7G-Street-Light-18.png)
Installation hole size:60mm

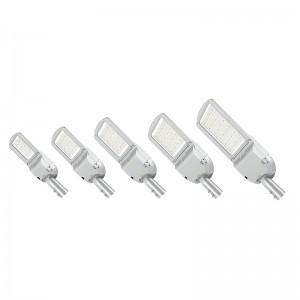

![LED 7G Street Light (1)](https://www.diluxled.com/uploads/LED-7G-Street-Light-1.png)
![LED 7G Street Light (14)](https://www.diluxled.com/uploads/LED-7G-Street-Light-14.png)

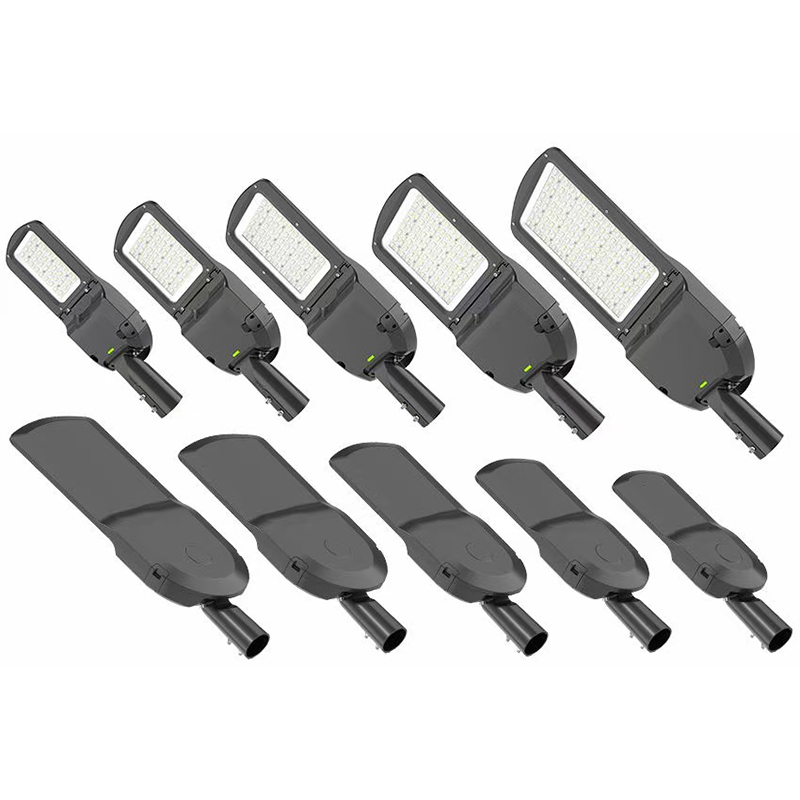

![LED 7G Street Light (2)](https://www.diluxled.com/uploads/LED-7G-Street-Light-2.png)
Installation hole size:60mm

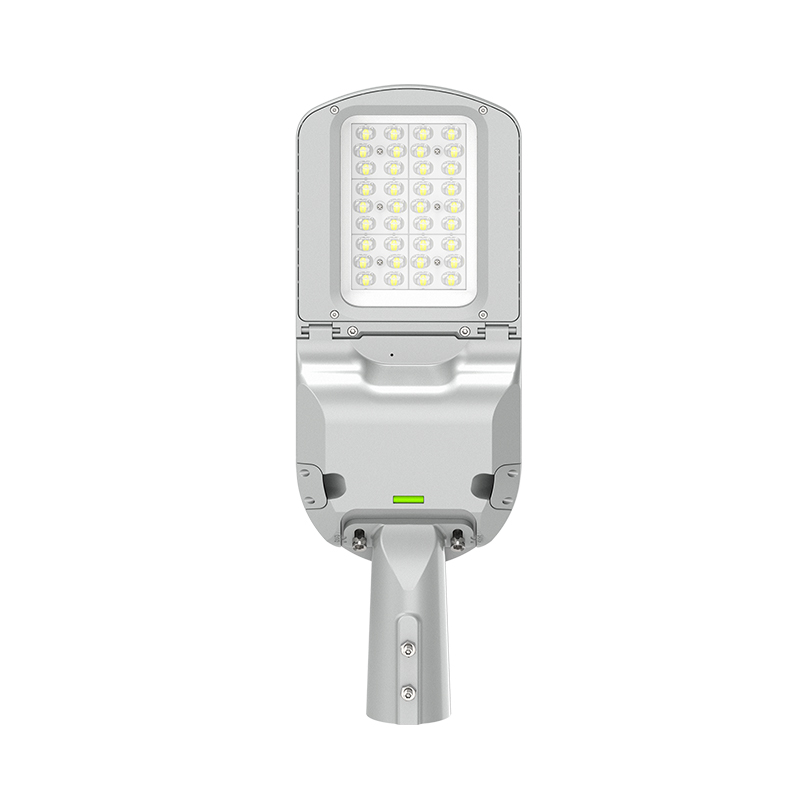

![LED 7G Street Light (3)](https://www.diluxled.com/uploads/LED-7G-Street-Light-3.png)
