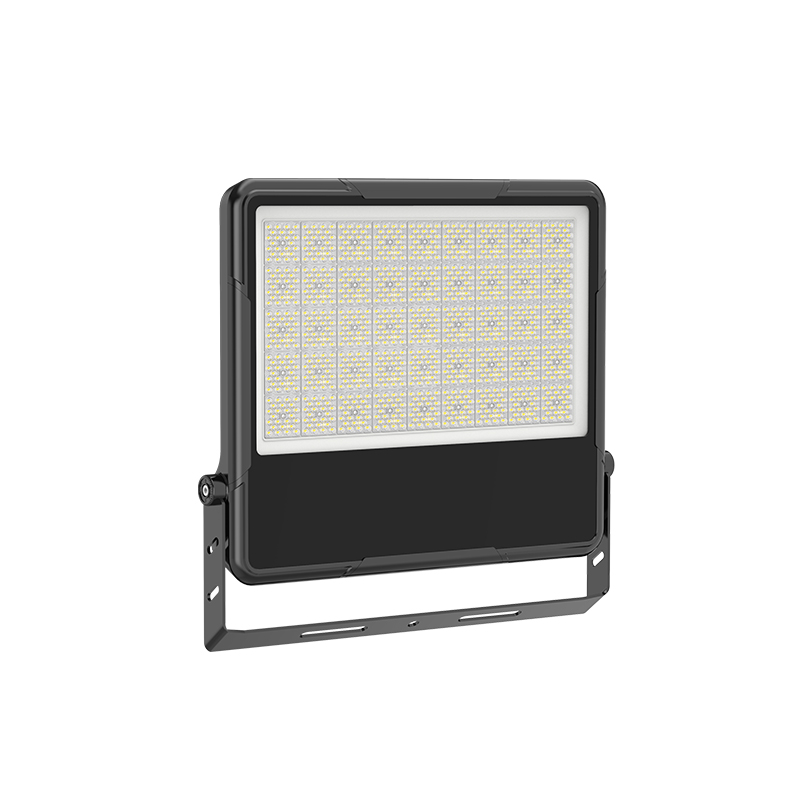

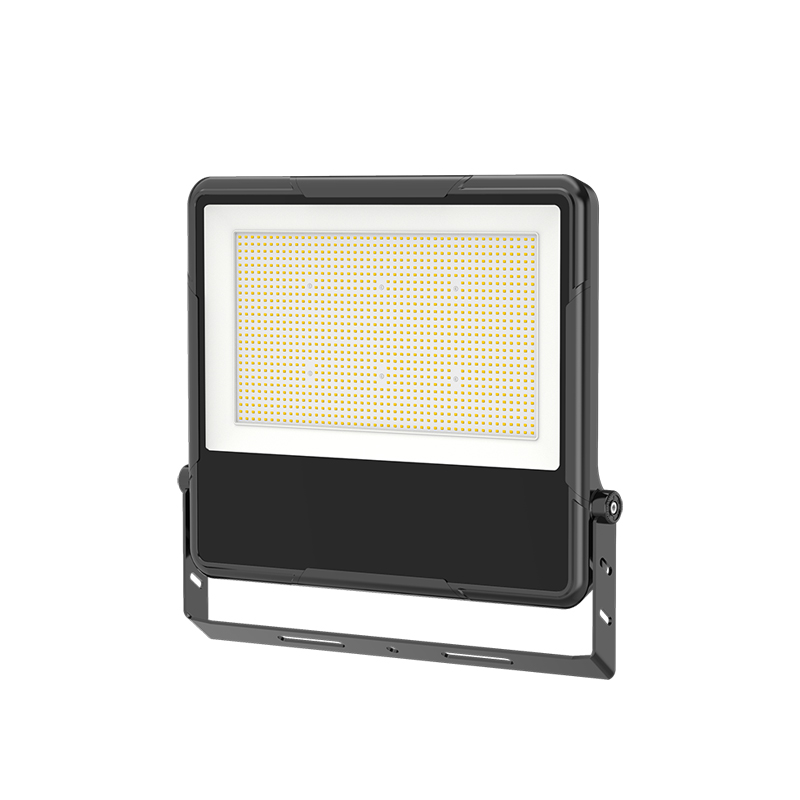

Panama Series LED Flood Light

Short Description:

• Die-casng technology by ADC12, excellent thermal management, reduce the temperature difference and ensure the lumen depreciaon.
• 4mm tempered glass, Integrated Breather Valve: Balances The Internal & External Temperature and Humidity
• Offset bracket design, Racked Angle ±120 ° adjustable, Allows For Precise Installaon
• Top brand LED chip and driver, ensure the product quality and lifeme
• Ingress Protecon Rang: IP66
• Operaon Temperature: -25C-+50C
• 3000K,4000K,5000K, 5700K,6500K available
• CRI >70,80
• 5 years Warranty

Product Detail

Product Tags


> Panama Proprietary mold, integrated die-cast aluminum housing,
> No screws in front design, stylish and simple appearance.
> Luminous efficiency up to 160lm/w
> This series has 6 specifications, power :30-320W
> Professional anti-glare full cut-off light distribution: Luminous Angle 15°/30°/60°/90°/120°T2M/T3M/50*120 polarized light /30*90 polarized light optional.

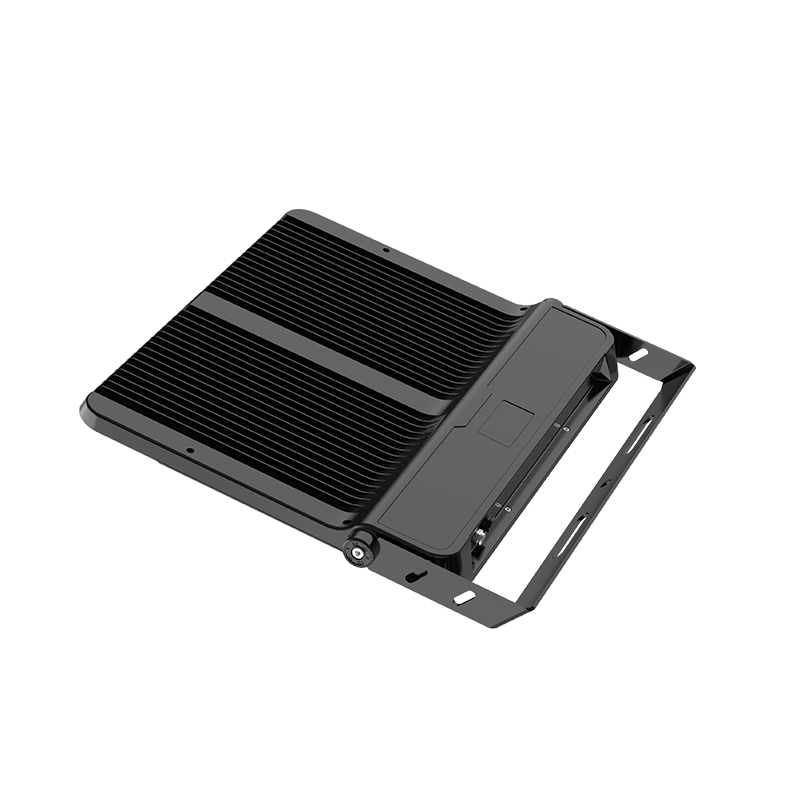

> Large heat dissipation area, good heat dissipation effect, long service life of lamps.
> High temperature tempered glass, surface paint process, excellent corrosion resistance.
> Protection level up to IP67.
>0/1-10V dimming, time control, photosensitivity, Internet of Things control and other functions are optional.


Floodlight is a common lighting equipment, widely used in a variety of places. It can focus light on a specific area and play a role in lighting and decoration.


Installation mode

Installation mode

Panama series Dimension(mmin)

Panama series Dimension(mmin)

Support hole size diagram

Support hole size diagram Unit mm

Luminaire Photometric

Luminous Intensity Distribution Diagram:

Luminous Intensity Distribution Diagram


- Input Voltage : 100-277VAC
- Driver Type : CE SAA Approved Flicker-free
- Luminous Efficacy :130-160lm/w
- Colour Rendering Index : > 80Ra
- LED Type : LM80 SMD LED
- Operating : Temperature:-30°C up to 50°C

- Color Temperature : 3000K/4000K/5000K/5700K
- Material : Die-cast Aluminum body & Polycarbonate
Diffuser/Toughened glass
- Ingress Protection : IP66
- Impact Rating : IK08
- Rated Life : 50,000 hours
- Warranty : 5 years

Panama Series LED  (3)
Panama Series LED  (1)
Panama Series LED  (5)


Panama Series LED  (4)
Panama Series LED  (2)


1.Please check the wire is good before connecting the wire
2.Please check if you shut the power before connecting
3.Please connect the wire with right color show in the sketch map
4.After connected to the power cable,make sure the cable joint position and wire of lamp must be waterproof processing,
5.It's nomal phenomenon,there is temperature rise on the products surface when use.
6.Please kindly read the introduction carefully to avoid the accident and damage. Just can be repaired and cleared after cutting off power.
7.Must be installed by qualified electrician. The connection way must be suitable for IEEE electrical standard or national standard.
8.Please kindly use soft cloth to clear it regularly (annually) to maintain the brightness.
9.It should be stocked in the shady, dry and clear environment and the stocked temperature is -30℃ to 50℃.
